List Of Analyses 2.3.0
List of analyses and topologies in the SMS results database, comprising 5744 individual maps from 1152 distinct signal regions, 100 different SMS topologies, from a total of 111 analyses.
The list has been created from the database version 2.3.0.
There is also an sms dictionary and a validation page.
Link to list of results including superseded and fastlim results.

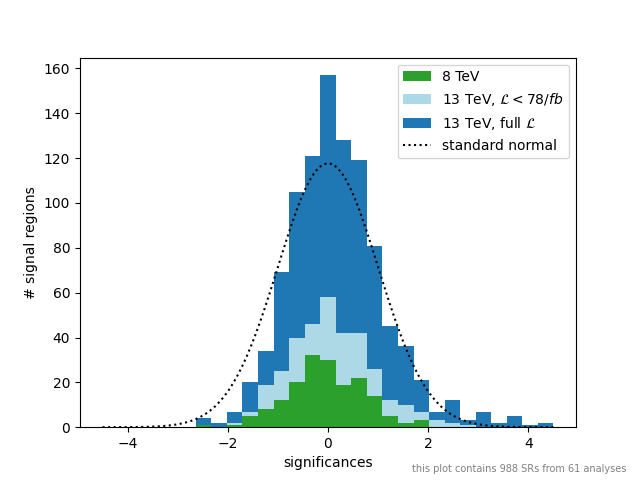

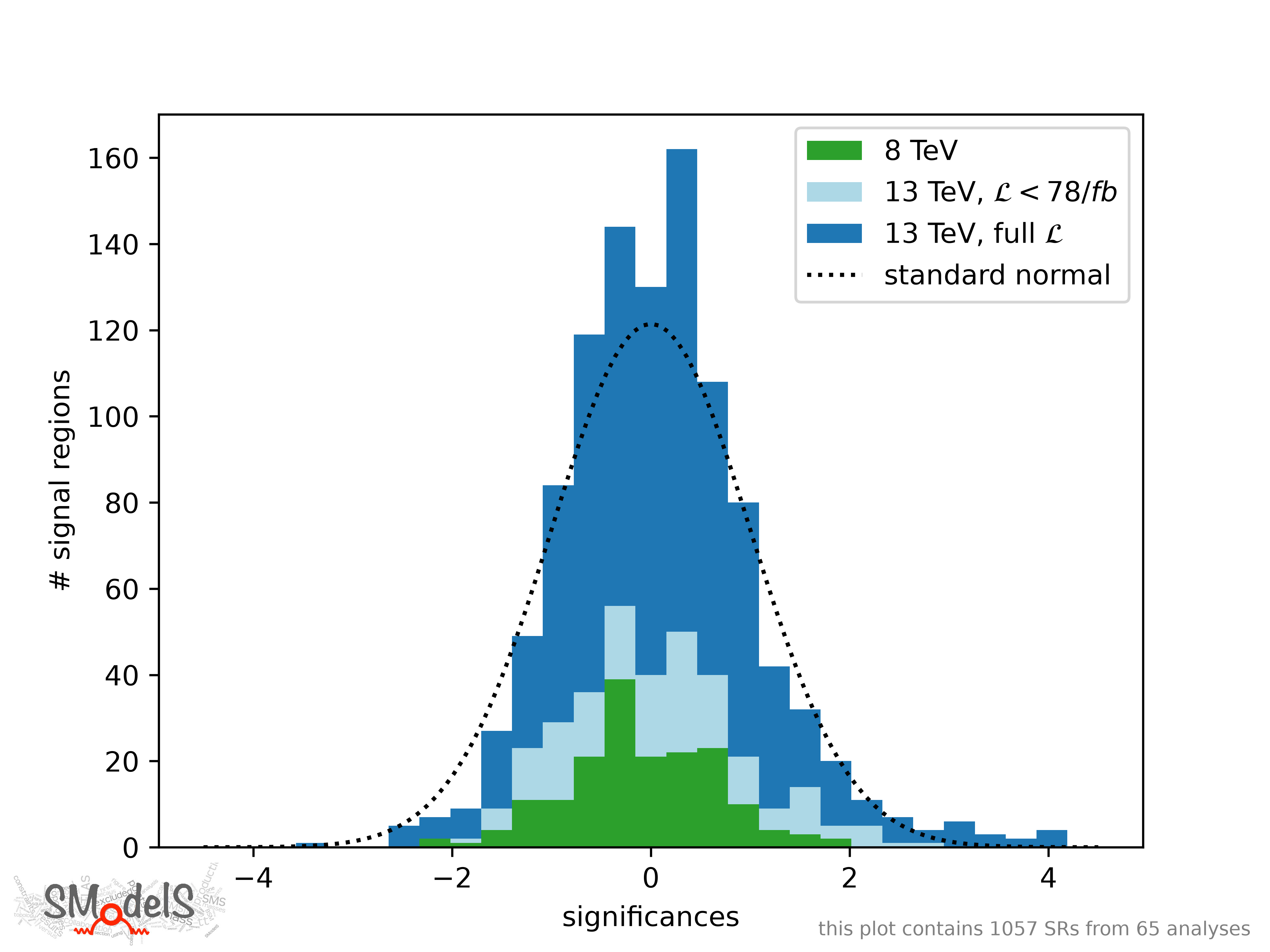

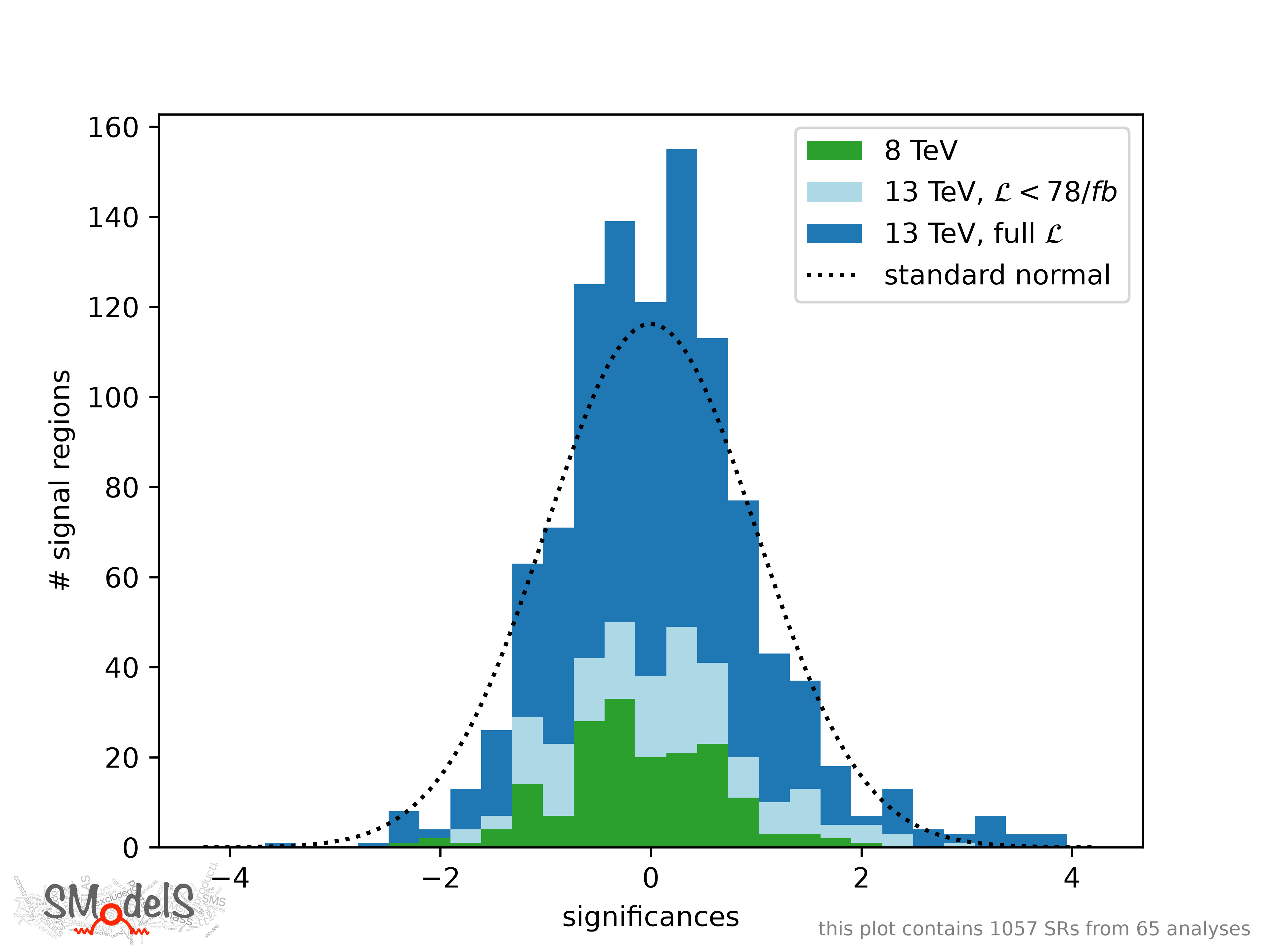

Plot: Significances with respect to the Standard Model hypothesis, for all signal regions in the database. A standard normal distribution is expected if no new physics is in the data. New physics would manifest itself as an overabundance of large significances.
Stats, by run, experiment, type
Run 2 - 13 TeV
In total, we have results from 38 ATLAS and 40 CMS 13 TeV searches.
- ATLAS upper limits: 35 analyses, 90 (of which 4 LLP) results
- ATLAS efficiency maps: 25 analyses, 74 (of which 12 LLP) results, 738 individual maps
- CMS upper limits: 37 analyses, 149 (of which 3 LLP) results
- CMS efficiency maps: 10 analyses, 60 results, 3423 individual maps
Run 1 - 8 TeV
In total, we have results from 15 ATLAS and 18 CMS 8 TeV searches.
- ATLAS upper limits: 13 analyses, 34 results
- ATLAS efficiency maps: 11 analyses, 36 results, 274 individual maps
- CMS upper limits: 16 analyses, 56 (of which 3 LLP) results
- CMS efficiency maps: 9 analyses, 47 (of which 9 LLP) results, 980 individual maps
ATLAS, 13 TeV (38 analyses)
| ID | short description | L [1/fb] | Tx names | obs. ULs | exp. ULs (1) | EMs | SR comb. (2) |
|---|---|---|---|---|---|---|---|
| Publications | |||||||
| ATLAS-SUSY-2019-09 | 3 leptons EW-ino | 139.0 | TChiWH, TChiWZ, TChiWZoff | ✔ | ✔ | ✔ | json |
| ATLAS-SUSY-2019-08 | 1L + higgs + Etmiss (EWino) | 139.0 | TChiWH | ✔ | ✔ | ✔ | json |
| ATLAS-SUSY-2019-02 | 2L + Etmiss (soft) | 139.0 | TChiWW, TSlepSlep | ✔ | ✔ | ✔ | SLv1 |
| ATLAS-SUSY-2018-42 | charged LLPs, dE/dx | 139.0 | T1Disp, THSCPM1b, TRHadGM1, TStauStauDisp | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-41 | Boosted hadronic EWK searches | 139.0 | TChiWH, TChiWW, TChiWZ | ✔ | ✔ | ✔ | SLv1 |
| ATLAS-SUSY-2018-40 | Sbottom to bH(tautau) | 139.0 | T6bbHH | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-32 | 2 OS leptons + Etmiss | 139.0 | TChiWW, TChipChimSlepSlep, TSlepSlep | ✔ | ✔ | ✔ | json |
| ATLAS-SUSY-2018-31 | 2b + 2H(bb) + Etmiss | 139.0 | T6bbHH | ✔ | ✔ | ✔ | json |
| ATLAS-SUSY-2018-23 | EWK WH(2 photons) | 139.0 | TChiHH, TChiWH | ✔ | ✔ | ||
| ATLAS-SUSY-2018-22 | jets + MET | 139.0 | T1, T2, T5WW, T5WWoff, T6WW, T6WWoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-14 | displaced vertices | 139.0 | TSelSelDisp, TSmuSmuDisp, TStauStauDisp | ✔ | json | ||
| ATLAS-SUSY-2018-12 | 0 leptons + jets + Etmiss | 139.0 | T2bbffff, T2tt, T2ttoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-10 | 1 lepton + jets + Etmiss | 139.0 | T5WW, T5WWoff, T6WW, T6WWoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-08 | OS leptons | 139.0 | T2bbffff, T2tt, T2ttoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-06 | 3 leptons EW-ino | 139.0 | TChiWZ, TChiWZoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2018-05 | 2L + jets + Etmiss (EWino) | 139.0 | T5ZZ, T6ZZ, TChiWZ, TChiWZoff | ✔ | ✔ | ✔ | json |
| ATLAS-SUSY-2018-04 | 2 hadronic taus (OS) | 139.0 | TStauStau | ✔ | ✔ | ✔ | json |
| ATLAS-SUSY-2017-03 | Multilepton EWK searches | 36.1 | TChiWZ | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2017-02 | 0L + jets + Etmiss | 36.1 | TChiH | ✔ | ✔ | ||
| ATLAS-SUSY-2017-01 | EWK WH(bb) + Etmiss | 36.1 | TChiWH | ✔ | ✔ | ||
| ATLAS-SUSY-2016-33 | 2 OSSF leptons + Etmiss | 36.1 | T5ZZ, T6ZZ | ✔ | ✔ | ||
| ATLAS-SUSY-2016-32 | hscp search | 31.6 | THSCPM1b (3), TRHadDM1, TRHadGM1, TRHadUM1 | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2016-28 | 2 b-jets + Etmiss | 36.1 | T2bb | ✔ | ✔ | ||
| ATLAS-SUSY-2016-27 | jets + photon + Etmiss | 36.1 | T5Zg, T5gg, T6gg, TChipChimgg | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2016-26 | ≥2 c jets + Etmiss | 36.1 | T2cc | ✔ | ✔ | ||
| ATLAS-SUSY-2016-24 | 2-3 leptons + Etmiss, EWino | 36.1 | TChiChipmSlepSlep, TChiWZ, TChipChimSlepSlep, TSlepSlep | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2016-19 | stops to staus | 36.1 | T4bnutaubnutau | ✔ | ✔ | ||
| ATLAS-SUSY-2016-17 | 2 opposite sign leptons + Etmiss | 36.1 | T2bbWWoff, T2tt, T2ttoff | ✔ | ✔ | ||
| ATLAS-SUSY-2016-16 | 1L stop | 36.1 | T2bbffff, T2tt, T2ttoff, T6bbWW | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2016-15 | 0L stop | 36.1 | T2bbffff, T2tt, T2ttoff | ✔ | ✔ | ||
| ATLAS-SUSY-2016-14 | 2 same-sign or 3 leptons + jets + Etmiss | 36.1 | T1ttofftt, T1tttt, T1ttttoff, T6ttWW | ✔ | ✔ | ||
| ATLAS-SUSY-2016-08 | displaced vertices | 32.8 | T1Disp | ✔ | ✔ | ||
| ATLAS-SUSY-2016-07 | 0L + jets + Etmiss | 36.1 | T1 (3), T2 (3), T5WW (3), T5WWoff (3), T5WZh, T5ZZ (3), T6WW (3), T6WWoff (3), T6WZh | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2016-06 | disappearing track | 36.1 | TDTM1F, TDTM1S, TDTM2F, TDTM2S | ✔ | |||
| ATLAS-SUSY-2015-09 | jets + 2 SS leptons or ≥3 leptons | 3.2 | T1tttt | ✔ | ✔ | ||
| ATLAS-SUSY-2015-06 | 0 leptons + 2-6 jets + Etmiss | 3.2 | T1, T2 | ✔ | |||
| ATLAS-SUSY-2015-02 | single lepton stop | 3.2 | T2tt | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2015-01 | 2 b-jets + Etmiss | 3.2 | T2bb | ✔ | ✔ |
CMS, 13 TeV (40 analyses)
| ID | short description | L [1/fb] | Tx names | obs. ULs | exp. ULs (1) | EMs | SR comb. (2) |
|---|---|---|---|---|---|---|---|
| Publications | |||||||
| CMS-SUS-21-002 | Hadronic EWK searches | 137.0 | TChiWH, TChiWW, TChiWZ, TChiZH | ✔ | ✔ | ✔ | SLv1 |
| CMS-SUS-20-004 | 2 Higgs(->bb) + Etmiss | 137.0 | T5HH, TChiHH | ✔ | ✔ | ✔ | SLv2 |
| CMS-SUS-20-002 | combined stop search | 137.0 | T2tt, T2ttoff, T6bbWW | ✔ | ✔ | ||
| CMS-SUS-20-001 | 2 OSSF leptons | 137.0 | T5ZZ, TChiWZ, TChiZZ, TSlepSlep | ✔ | ✔ | ||
| CMS-SUS-19-013 | High momentum Z Boson+ Etmiss | 137.0 | T5ZZ | ✔ | ✔ | ||
| CMS-SUS-19-011 | Stop search in dilepton + jets + Etmiss final state | 137.0 | T2tt, T2ttoff, T6bbWW | ✔ | ✔ | ||
| CMS-EXO-19-010 | disappearing track | 101.0 | TDTM1F, TDTM2F | ✔ | |||
| CMS-SUS-19-010 | Jets + top and W tag | 137.0 | T1tttt, T1ttttoff, T2cc, T2tt, T2ttC, T2ttoff, T5tctc, T6bbWW, T6bbWWoff | ✔ | ✔ | ||
| CMS-SUS-19-009 | 1L + jets, MHT | 137.0 | T2tt, T2ttoff, T6bbWW | ✔ | ✔ | ||
| CMS-SUS-19-008 | 2-3L + jets | 137.0 | T1tttt, T1ttttoff, T5WW, T5WZ, T5tctc, T5tttt | ✔ | ✔ | ||
| CMS-SUS-19-006 | 0L + jets, MHT | 137.0 | T1 (4), T1bbbb (4), T1tttt (4), T1ttttoff (4), T2 (4), T2bb (4), T2tt (4), T2ttoff (4) | ✔ | ✔ | ✔ | SLv1 |
| CMS-EXO-19-001 | displaced vertices | 137.0 | T2Disp | ✔ | |||
| CMS-SUS-18-007 | H(diphoton) | 77.5 | T6bbHH, TChiHH, TChiWH | ✔ | ✔ | ||
| CMS-SUS-18-004 | two or three soft leptons | 137.0 | T2bbffff, T6bbWWoff, TChiWZoff | ✔ | ✔ | ||
| CMS-SUS-18-002 | photon, jets, b-jets+ Etmiss, top tagging | 35.9 | T5Hg, T5bbbbZg, T5ttttZg, T6ttZg | ✔ | ✔ | ||
| CMS-SUS-17-010 | 2L stop | 35.9 | T2tt, T2ttoff, T6bbWW, TChipChimSlepSnu | ✔ | ✔ | ||
| CMS-SUS-17-009 | SFOS leptons + Etmiss | 35.9 | TSelSel, TSlepSlep, TSmuSmu | ✔ | ✔ | ||
| CMS-SUS-17-006 | jets + boosted H(bb) + Etmiss | 35.9 | T5HH, T5HZ | ✔ | ✔ | ||
| CMS-SUS-17-005 | 1L + multijets + Etmiss, top tagging | 35.9 | T2bbffff, T6bbWWoff | ✔ | ✔ | ||
| CMS-SUS-17-004 | EW-ino combination | 35.9 | TChiWH, TChiWZ, TChiWZoff | ✔ | ✔ | ||
| CMS-SUS-17-003 | 2 taus + Etmiss | 35.9 | TChiChipmStauStau, TChipChimStauSnu | ✔ | ✔ | ||
| CMS-SUS-16-051 | 1L stop | 35.9 | T2tt, T2ttoff, T6bbWW | ✔ | ✔ | ||
| CMS-SUS-16-050 | 0L + top tag | 35.9 | T1tttt (4), T1ttttoff (4), T2tt (4), T2ttoff, T5tctc (4), T5tttt | ✔ | ✔ | ✔ | SLv1 |
| CMS-SUS-16-048 | two soft OS leptons | 35.9 | TChiWZoff | ✔ | SLv1 | ||
| CMS-SUS-16-047 | Photon + HT | 35.9 | T5gg, T6gg | ✔ | ✔ | ||
| CMS-SUS-16-046 | Photon + Etmiss | 35.9 | T5gg, T6gg | ✔ | ✔ | ||
| CMS-SUS-16-045 | Sbottom searches in bHbH and H -> photon photon final states | 35.9 | T6bbHH, TChiWH | ✔ | ✔ | ||
| CMS-SUS-16-043 | EWK WH(bb) | 35.9 | TChiWH | ✔ | ✔ | ||
| CMS-SUS-16-042 | 1L + jets + Etmiss (with Delta Phi) | 35.9 | T1tttt, T1ttttoff, T5WW, T5WWoff | ✔ | ✔ | ||
| CMS-SUS-16-041 | Multileptons + jets + Etmiss | 35.9 | T1tttt, T1ttttoff, T6HHtt, T6ZZofftt, T6ZZtt, T6ttWW, T6ttWWoff, T6ttoffWW | ✔ | ✔ | ||
| CMS-SUS-16-039 | Multilepton EWK searches | 35.9 | TChiChipmSlepL, TChiChipmSlepStau, TChiChipmStauStau, TChiWH, TChiWZ (4), TChiWZoff (4) | ✔ | ✔ | ✔ | SLv1 |
| CMS-SUS-16-037 | 1L + jets + Etmiss with MJ (sum of masses of large radius jets) | 35.9 | T1tttt, T1ttttoff, T5ttofftt, T5tttt | ✔ | ✔ | ||
| CMS-SUS-16-036 | 0L + jets + Etmiss (using MT2) | 35.9 | T1, T1bbbb, T1tttt, T1ttttoff, T2, T2bb, T2cc, T2tt, T2ttoff, T6bbWW | ✔ | ✔ | ||
| CMS-SUS-16-035 | 2 SS leptons | 35.9 | T1tttt, T1ttttoff, T5WW, T5WWoff, T5tctc, T5ttbbWWoff, T5tttt, T6ttWW, T6ttWWoff, T6ttoffWW | ✔ | ✔ | ||
| CMS-SUS-16-034 | 2 OSSF leptons | 35.9 | T5ZZ, TChiWZ | ✔ | ✔ | ||
| CMS-SUS-16-033 | 0L + jets + Etmiss (using MHT) | 35.9 | T1 (3), T1bbbb (3), T1tttt (3), T1ttttoff (3), T2 (3), T2bb (3), T2tt (3), T2ttoff (3) | ✔ | ✔ | ✔ | |
| CMS-SUS-16-032 | Sbottom and compressed stop (jets + Etmiss) | 35.9 | T2bb, T2cc | ✔ | ✔ | ||
| CMS-SUS-16-009 | multijets + Etmiss, top tagging | 2.3 | T1tttt, T1ttttoff, T2tt, T2ttoff, T5tctc | ✔ | ✔ | ||
| PAS | |||||||
| CMS-PAS-SUS-16-052 | soft lepton, <= 2 jets | 35.9 | T2bbWWoff (4), T6bbWWoff (4) | ✔ | ✔ | ✔ | SLv1 |
| CMS-PAS-EXO-16-036 | hscp search | 12.9 | THSCPM1b, TRHadGM1, TRHadQM1 | ✔ | ✔ |
ATLAS, 8 TeV (15 analyses)
| ID | short description | L [1/fb] | Tx names | obs. ULs | exp. ULs (1) | EMs | SR comb. (2) |
|---|---|---|---|---|---|---|---|
| Publications | |||||||
| ATLAS-SUSY-2014-03 | ≥ 2(c-)jets + Etmiss | 20.3 | TScharm | ✔ | |||
| ATLAS-SUSY-2013-23 | 1 lepton + 2 b-jets (or 2 photons) + Etmiss (mbb = mH) | 20.3 | TChiWH | ✔ | ✔ | ||
| ATLAS-SUSY-2013-21 | monojet or c-jet + Etmiss | 20.3 | T2bb, T2bbWW, T2bbWWoff, T2cc | ✔ | |||
| ATLAS-SUSY-2013-20 | 2 leptons (e,mu) + Etmiss | 20.0 | T5WW, T5WWoff, T6WW, T6WWoff | ✔ | ✔ | ||
| ATLAS-SUSY-2013-19 | 2 OS leptons + (b-)jets + Etmiss (leptonic/hadronic MT2) | 20.3 | T2bbWW, T2tt | ✔ | ✔ | ||
| ATLAS-SUSY-2013-18 | 0 or ≥1 leptons + jets + ≥ 3 b-jets + Etmiss | 20.1 | T1bbbb, T1tttt | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-16 | 0 lepton + 6 (2 b-)jets + Etmiss | 20.1 | T2tt | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-15 | 1 lepton + 4 (1 b-)jets + Etmiss | 20.3 | T2tt | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-12 | 3 leptons (e,mu,tau) + Etmiss | 20.3 | TChiChipmSlepL, TChiChipmStauL, TChiWH, TChiWZ, TChiWZoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-11 | 2 leptons (e,mu) + Etmiss | 20.3 | TChiWW (3), TChiWZ, TChipChimSlepSnu (3), TSlepSlep (3) | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-09 | 2 SS leptons + 0-3 b-jets + Etmiss | 20.3 | T1tttt, T5WW, T5tctc | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-08 | Z + b-jets + Etmiss | 20.3 | T6ZZtt | ✔ | ✔ | ||
| ATLAS-SUSY-2013-05 | 0 leptons + 2 b-jets + Etmiss | 20.1 | T2bb (3), T6bbWW, T6bbWWoff | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-04 | 0 leptons + ≥ 7-10 jets + Etmiss | 20.3 | T1tttt | ✔ | ✔ | ✔ | |
| ATLAS-SUSY-2013-02 | 0 leptons + 2-6 jets + Etmiss | 20.3 | T1, T2 (3), T5WW, T5WWoff, T5tctc, T6WW | ✔ | ✔ | ✔ |
CMS, 8 TeV (18 analyses)
| ID | short description | L [1/fb] | Tx names | obs. ULs | exp. ULs (1) | EMs | SR comb. (2) |
|---|---|---|---|---|---|---|---|
| Publications | |||||||
| CMS-SUS-14-021 | soft leptons, low jet multiplicity, high Etmiss | 19.7 | T2bbWW, T2bbWWoff | ✔ | ✔ | ✔ | |
| CMS-SUS-14-010 | b-jets + 4 Ws (combination of 5 analyses, 0, 1, 2, … leptons) | 19.5 | T1tttt, T1ttttoff | ✔ | ✔ | ||
| CMS-SUS-13-019 | ≥ 2 jets + Etmiss, MT2 | 19.5 | T1, T1bbbb, T1tttt, T1ttttoff, T2, T2bb, T2tt, T2ttoff | ✔ | ✔ | ||
| CMS-SUS-13-013 | 2 SS leptons + (b-)jets + Etmiss | 19.5 | T1tttt, T1ttttoff, T6ttWW, T6ttWWoff | ✔ | ✔ | ✔ | |
| CMS-SUS-13-012 | jet multiplicity + HTmiss | 19.5 | T1, T1tttt, T1ttttoff, T2 (3) | ✔ | ✔ | ✔ | |
| CMS-SUS-13-011 | 1 lepton + ≥ 4 (1b-)jets + Etmiss | 19.5 | T2tt, T2ttoff, T6bbWW, T6bbWWoff | ✔ | ✔ | ✔ | |
| CMS-SUS-13-007 | 1 lepton + ≥ 2 b-jets + Etmiss | 19.3 | T1tttt, T1ttttoff, T5tttt | ✔ | ✔ | ✔ | |
| CMS-EXO-13-006 | hscp search | 18.8 | THSCPM1b (3), THSCPM2b (3), THSCPM3 (3), THSCPM4 (3), THSCPM5 (3), THSCPM6 (3), THSCPM7 (3), THSCPM8 (3), THSCPM9 (3) | ✔ | |||
| CMS-SUS-13-006 | EW productions with decays to leptons, W, Z, and Higgs | 19.5 | TChiChipmSlepL, TChiChipmSlepStau, TChiWH, TChiWZ, TChiWZoff, TSlepSlep | ✔ | ✔ | ||
| CMS-SUS-13-004 | ≥ 1 b-jet + Etmiss, Razor | 19.3 | T1bbbb, T1tttt, T1ttttoff, T2tt, T2ttoff | ✔ | ✔ | ||
| CMS-SUS-13-002 | ≥ 3 leptons (+jets) + Etmiss | 19.5 | T1tttt | ✔ | ✔ | ||
| CMS-SUS-12-028 | jets + Etmiss, αT | 11.7 | T1, T1bbbb, T1tttt, T2, T2bb | ✔ | ✔ | ||
| CMS-EXO-12-026 | hscp search | 18.8 | THSCPM1b, TRHadGM1, TRHadUM1 | ✔ | ✔ | ||
| CMS-SUS-12-024 | 0 leptons + ≥ 3 (1b-)jets + Etmiss | 19.4 | T1tttt, T1ttttoff | ✔ | ✔ | ✔ | |
| PAS | |||||||
| CMS-PAS-SUS-13-023 | hadronic stop | 18.9 | T2tt, T2ttoff, T6bbWW, T6bbWWoff | ✔ | ✔ | ||
| CMS-PAS-SUS-13-018 | 1-2 b-jets + Etmiss, MCT | 19.4 | T2bb | ✔ | ✔ | ||
| CMS-PAS-SUS-13-016 | 2 OS leptons + ≥ 4 (2 b-)jets + Etmiss | 19.7 | T1tttt, T1ttttoff | ✔ | ✔ | ✔ | |
| CMS-PAS-SUS-13-015 | ≥ 5(1b-)jets + Etmiss | 19.4 | T2tt, T2ttoff | ✔ |
(1) Expected upper limits (‘exp. ULs’): allow SModelS to determine the sensitivity of UL results. Moreover, they may be used to compute a crude approximation of a likelihood, modelled as a truncated Gaussian (currently an experimental feature).
(2) Likelihood information for combination of signal regions (‘SR comb.’): ‘SLv1’ = a covariance matrix for a simplified likelihood v1. ‘SLv2’ = a covariance matrix plus third momenta for simplified likelihood v2. ‘json’ = full likelihoods as pyhf json files.
(3) ‘‘Home-grown’’ result, i.e. produced by SModelS collaboration, using recasting tools like MadAnalysis5 or CheckMATE.
(4) Aggregated result; the results are the public ones, but aggregation is done by the SModelS collaboration.
